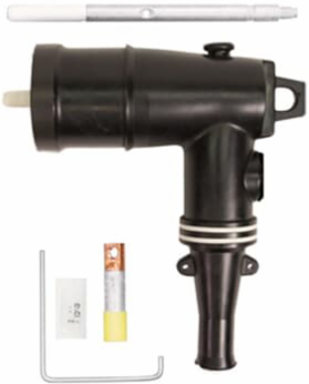

Thomas & Betts 161LR-A5270 15KV 200A LB ELBOW NO-SEALING KIT
- MPN: 161LR-A5270
- UPC: 075114328357
- PPN: T-B-161LR-A5270
- UNSPSC: 39121421
CAD
$209.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15KV, 200 Amp, Loadbreak Elbow, Without Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250.
Specifications
Additional Information
- Application
- 15kV, 200 Amp Loadbreak Connection.
- Color
- Black
- Effective Date
- 20170118
- Includes
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeCable Insulation Diameter 0.575 inch to 0.740 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
