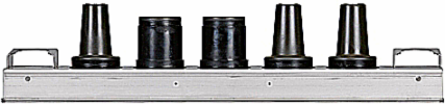

Thomas & Betts J5-22666-15 Multi-Point Junction - 5 Points
- MPN: J5-22666-15
- UPC: 783786401222
- PPN: T-B-J5-22666-15
CAD
$2529.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5 Point Junction, with two 200 Amp Deepwell Interfaces and three 600 Amp Bushing Interfaces, 15kV, No Tilt Mounting.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | 4 inch Center Spacing. |
| Standard | ANSI/IEEE Standard 386 |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Mounting | No Tilt Mounting Bracket. |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Multi-Point Junction - 5 Points |
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
| Size | Overall Length 27 inches, Width 6-3/4 inches. |
| Temperature Rating | -40 to +65 Degrees C. |
| Connection | Push-in |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
