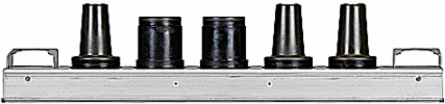

Thomas & Betts J5-22222-15-CS1185 Multi-Point Junction - 5 Points
- MPN: J5-22222-15-CS1185
- UPC: 075114339162
- PPN: T-B-J5-22222-15-CS1185
CAD
$3258.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multi-Point Junction - 5 Points. 15kv, (5) 200-Amp Deepwell Interfaces. Any Customer Modification - CS1185 - 600/200 Amp junction with short bracket, no parking stands and bushing inserts installed. (1601A4(1) inserts installed).
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | 4 inch Center Spacing. |
| Standard | ANSI/IEEE Standard 386 |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Mounting | Short Bracket and No Parking Stands. |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Multi-Point Junction - 5 Points |
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
| Size | Overall Length 27 inches, Width 6-3/4 inches. |
| Temperature Rating | -40 to +65 Degrees C. |
| Connection | Push-in |
