Thomas & Betts J5-66666-25-SV-N Multi-Point Junction - 5 Points
- MPN: J5-66666-25-SV-N
- UPC: 007511433853
- PPN: T-B-J5-66666-25-SV-N
CAD
$3192.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

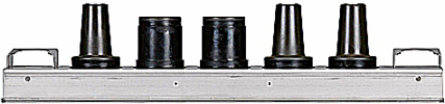

25/28kV, 600 Amps, Multi-Point Junction. DeadBreak. 5 Points. 5 x 600 Amps Bushing Interface. Interface Spacing - 6-1/2 inch centers. No Parking Stand.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 26121630 Cable accessories
- Brand Name
- Elastimold
- Special Features
- 6-1/2 inch Center Spacing.
- Standard
- ANSI/IEEE Standard 386
- Material
- EPDM Rubber and Stainless Steel Mounting Brackets.
- Mounting
- No Parking Stand.
IGCC1779 Cable accessories
TypeMulti-Point Junction - 5 Points
ApplicationSuited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass.
SizeOverall Length 39 inches, Width 6-3/4 inches.
Temperature Rating-40 to +65 Degrees C.
ConnectionPush-in
