Thomas & Betts 655LRTP-J0290-DRG-S Stick Op Reducing Tap Plug Connector
- MPN: 655LRTP-J0290-DRG-S
- UPC: 783786542833
- PPN: T-B-655LRTP-J0290-DRG-S
CAD
$1395.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

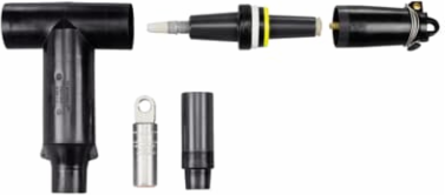

600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, With Insulated Cap. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Enclosure
- Yes, EPDM Rubber
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeStick Op Reducing Tap Plug Connector
ApplicationConnect 600 Amp interface to 200 Amp Loadbreak Tap
Conductor RangeConductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.
ColorBlack
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
