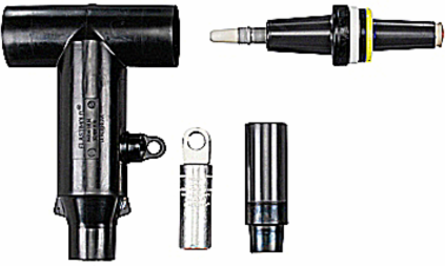

Thomas & Betts 656LRTP-H0270-S Stick Op Reducing Tap Plug Connector with Test Point
- MPN: 656LRTP-H0270-S
- UPC: 783786532186
- PPN: T-B-656LRTP-H0270-S
CAD
$1252.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit. 200ECS Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Enclosure
- Yes, EPDM Rubber
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeStick Op Reducing Tap Plug Connector with Test Point
ApplicationConnect 600 Amp interface to 200 Amp Loadbreak Tap
Conductor RangeConductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
ColorBlack
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
