Thomas & Betts 755LRTP-M0330-DRG Stick-OP Elbow Connector

MPN: 755LRTP-M0330-DRG
UPC: 783786021215
PPN: T-B-755LRTP-M0330-DRG

$1852.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Test Point. 35kV Reducing Tap Plug. Includes Hex-Broach for Torque Installation. Peroxide-Cured Insulation and Jacket.
Standard	ANSI/IEEE Standard 386
Conductor Range	Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
Color	Black
Amperage Rating	600/200 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

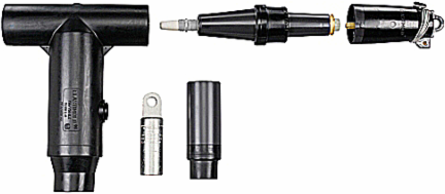

Consist Of	Elbow Housing, Reducing Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet, Crimp Chart.

IGCC	4586 Electrical connector assembly
Type	Stick-OP Elbow Connector
Application	Mates with a 600 Amp elbow interface and provides a 200 Amp load break tap, an access hole thru the bore of the reducing tap plug allows use of a 600AT operating tool to bolt and secure the component to a mating 600 Amp elbow and apparatus bushing.
Size	Cable Insulation Diameter 1.370 inch to 1.630 inch.
Material	Housing - EPDM Rubber
Voltage Rating	35kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
