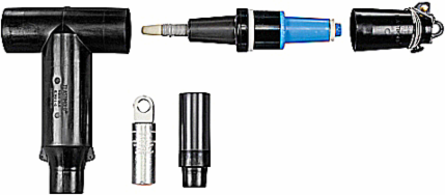

Thomas & Betts K655LRTP-H0240-DRG Stick Op Reducing Tap Plug Connector
- MPN: K655LRTP-H0240-DRG
- UPC: 783786411412
- PPN: T-B-K655LRTP-H0240-DRG
CAD
$1504.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 25kV, Stick-Op Connector Kit with Insulated Cap. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Enclosure
- Yes, EPDM Rubber
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeStick Op Reducing Tap Plug Connector
ApplicationConnect 600 Amp interface to 200 Amp Loadbreak Tap
Conductor RangeConnector Size 1/0 Stranded/Compressed or 2/0 Compact/Solid.
ColorBlack
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
Packaging
- Outer Quantity
- 1
- Weight Uom
- 8.5 lbs. Each
Outer Dimensions (inches)13.5x9.25x8.5
