Thomas & Betts 656CETP-J0290 15KV 600A DB TP COMBO-T J0290

15KV 600A DB TP COMBO-T J0290

Thomas & Betts 656CETP-J0290 15KV 600A DB TP COMBO-T J0290

MPN: 656CETP-J0290
UPC: 075114239660
PPN: T-B-656CETP-J0290
UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2003.17/ EA

Loading add to cart quantity...

Description

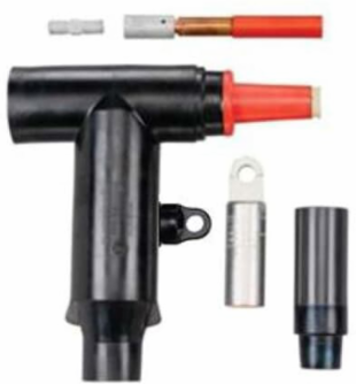

15kV, 600 Amp Combo T Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size Compressed-Stranded 300 kcmil or Compacted-Solid 350 kcmil.

Specifications

Additional Information

Application: 600 Amps, 15kV Connector

Color: Black

Effective Date: 20150427

Includes: Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.

Material: Housing - EPDM Rubber

Product Type: ComboT Elbow

Special Functions: Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point

Temperature Range: -40 to +65 °C

Brand / LabelElastimold

Current Rating600 A

Environmental ConditionsAll Weatheronditions °C

Insulation MaterialYes, EPDM Rubber

Product NameELECTRICAL CONNECTOR,>1000V

Size13.31 inches width, 10.88 inch bottom edge to center of bushing.

StandardsANSI/IEEE Standard 386

Voltage Rating15 kV

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
