Thomas & Betts 656CETP-J5300 15KV 600A DB TP COMBO-T J5300
- MPN: 656CETP-J5300
- UPC: 075114310857
- PPN: T-B-656CETP-J5300
- UNSPSC: 39121421
CAD
$2587.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

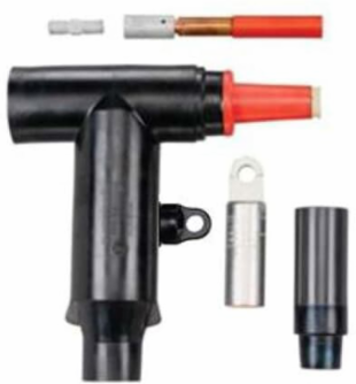

15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 150.
Specifications
Additional Information
- Application
- 600 Amps, 15kV Connector
- Color
- Black
- Effective Date
- 20160714
- Includes
- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- ComboT Elbow
- Special Functions
- Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
