Thomas & Betts 656CETP-NAC04-DRG-S 15KV 600A DB TP COMBO-T NAC04-DRG-S
- MPN: 656CETP-NAC04-DRG-S
- UPC: 075114400039
- PPN: T-B-656CETP-NAC04-DRG-S
- UNSPSC: 39121421
CAD
$2349.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

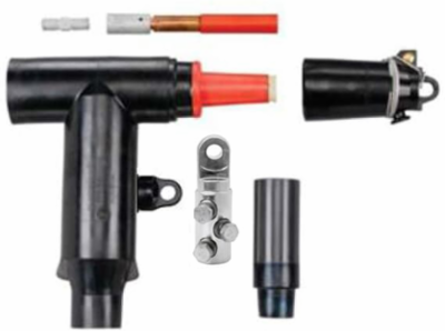

15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Tin Plated Aluminum ShearBolt Lug, Conductor Size 750 to 1250 kcmil Stranded/Compressed and Solid/Compact. Cold Shrinkable Jacket Seal.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 600 Amps, 15kV Connector
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR>1000V
- Special Functions
- Reducing Tap Plug with Stud, Cable Adapter, ShearBolt Lug and Insulated Cap
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeMechanical
Effective Date20190718
IncludesIncludes Elbow Connector Housing, Stud, ShearBolt Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.
MaterialHousing - EPDM Rubber
Product TypeComboT Elbow
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
