Thomas & Betts 655ETP-N0410-SG3 15KV 600A ETP ELBOW KIT N0410SG3
- MPN: 655ETP-N0410-SG3
- UPC: 075114298483
- PPN: T-B-655ETP-N0410-SG3
- UNSPSC: 39121421
CAD
$1146.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

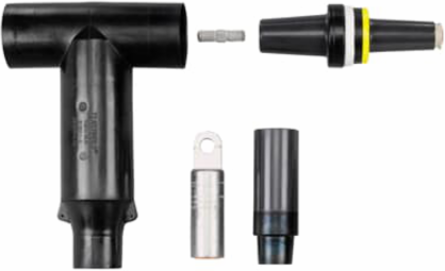

15kV, 600 Amp, DeadBreak, Test and Ground Connector Kit, Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and 0370 style Compression Lug. Cable Insulation 1.515-1.780 inches. Aluminum Compression Lug, Conductor Size 1000 Stranded/Compressed. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring
Specifications
Additional Information
| Application | 600 Amps, 15kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL PLUG |
| Size | Cable Insulation Diameter 1.515 inch to 1.780 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20160407 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Includes Sealing Kit |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
