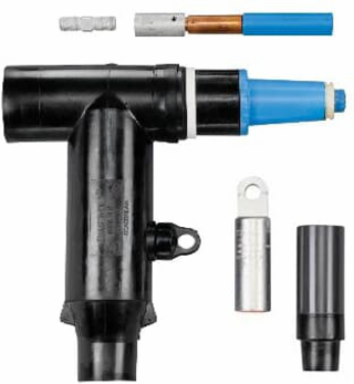

Thomas & Betts K656CETP-J0270 25KV 600A COMBO T NO SEALING KIT

MPN: K656CETP-J0270
UPC: 075114338899
PPN: T-B-K656CETP-J0270
UNSPSC: 39121421

$2654.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Intergral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 0.980 to 1.180 inches (24.9-30.0mm). Aluminum Conductor Material, Conductor Code 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. No Sealing Kit.

Specifications

Additional Information

Application	600 Amps, 25kV Connector
Color	Black
Effective Date	20170417
Includes	Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
Material	Housing - EPDM Rubber
Product Type	ComboT Elbow with Test Point
Special Functions	Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	13.31 inches width, 10.88 inch bottom edge to center of bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	25 kV
