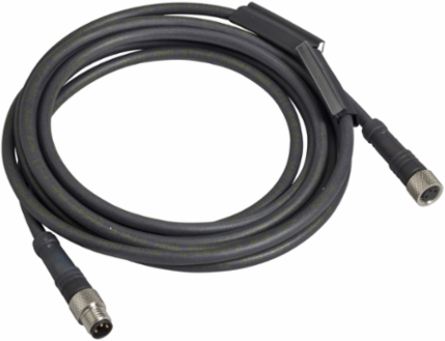

Telemecanique Sensors XZCR2705037R1 Jumper cable XZ, male straight M8 3 pin, female straight M8 3 pin, PUR 1 m
- MPN: XZCR2705037R1
- PPN: TES-XZCR2705037R1
- UNSPSC: 39121528
CAD
$33.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jumper cable XZ, male straight M8 3 pin, female straight M8 3 pin, PUR 1 m
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Category
- cabling accessory
Accessory / Separate Part Typejumper cable
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.2 mm
- [Ue] Rated Operational Voltage
- 45 V DC || 60 V AC
- Insulation Resistance
- >= 1000 MOhm
- [In] Rated Current
- 4 A
- Jumper Cable End 1
- M8 male 3 pins straight screw-on
Jumper Cable End 2M8 female 3 pins straight screw-on
Wire Insulation MaterialPUR
Maximum Resistance Across Terminals5000 mOhm
Cable Length1 m
Cable Composition3 x 0.34 mm²
Net Weight0.065 kg
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -35-100 °C
Ambient Air Temperature For Operation-35-90 °C static || -5-90 °C flexing
Ip Degree Of ProtectionIP67 || IP65 || IP69K
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1308015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1308015
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
