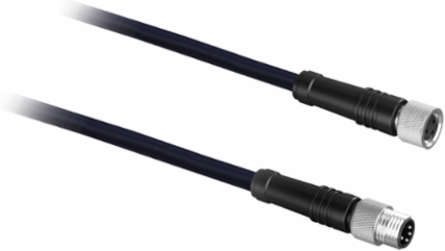

Jumper cable PVC 4 W m8 f straight m8 m straight
Telemecanique Sensors

Telemecanique Sensors XZCRV2609V3L1 Jumper cable PVC 4 W m8 f straight m8 m straight

  • MPN: XZCRV2609V3L1
  • PPN: TES-XZCRV2609V3L1

CAD

$51.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Jumper cable PVC 4 W m8 f straight m8 m straight

Documentation & Downloads

Specifications

Key Specifications

Accessory / Separate Part Category
cabling accessory
Accessory / Separate Part Typejumper cable

Complementary

Collar Material
metal
Cable Outer Diameter
4.6 mm
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Insulation Resistance
>= 1000 MOhm
Line Rated Current
3 A
Jumper Cable End 1
M8 male 4 pins straight screw-on
Jumper Cable End 2M8 female 3 pins straight screw-on
Wire Insulation MaterialPVC
Maximum Resistance Across Terminals5000 mOhm
Cable Length1 m
Cable Composition3 x 0.25 mm²
Net Weight0.09 kg

Environment

Product Certifications
cULus
Ambient Air Temperature For Storage
-25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65

Offer Sustainability

Rohs Exemption Information
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
