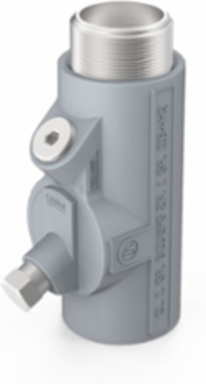

Killark EYD-7-T Aluminum Drain Seal Fitting 2-1/2 Inch, NPT Tapered Threads, Gray
- MPN: EYD-7-T
- UPC: 783936110851
- PPN: HBL-EYD-7-T
- UNSPSC: 39131708
CAD
$820.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simplified installation
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
- Unique design enables installation of drain/breather right after compound is poured – no waiting
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- Includes Drain Breather Fitting KDB-1
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Ratings
- 3R
- Color
- Gray
- Height
- 8.01 in
- Special Features
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
- Width
- 3.34 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYD Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ApplicationTo minimize the passage of gases and vapors from one electrical installation to another through the conduit system while offering a degree of ventilation and draining of condensation. To confine any explosions from sealed enclosures and prevent pressure pilling between conduit systems.
FinishPowder Epoxy Paint
Hub Size2-1/2"
TypeSealing Fitting
Weight3.08 lb.
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG AL 2-1/2"DRAIN NIPPLE
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging4.9
MaterialCopper-free aluminum (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936110851
NAICS Code3359323119
