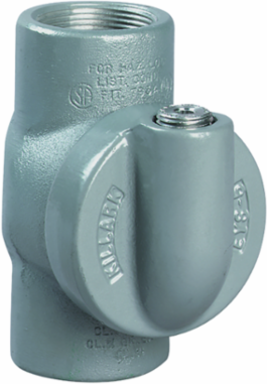

Killark EYS-7 2-1/2 Inch EYS Seal Fitting Aluminum Female/Female, Copper-Free, Class I Hazardous Rating
- MPN: EYS-7
- UPC: 783936110172
- PPN: HBL-EYS-7
- UNSPSC: 39131708
CAD
$260.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
2-1/2" EYS Seal Fitting Aluminum, Female/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYS-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 7.062 in
- Length
- 10.12 in
- Type
- Sealing Fitting
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions10.12 in x 4.68 in x 7.062 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size2-1/2"
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Width4.68 in
ARRA CompliantContact Manufacturer
Description - InvoiceEYS SEAL FTG AL 2-1/2" FEMAL/FEMAL
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging3.5
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936110172
NAICS Code3359323114
