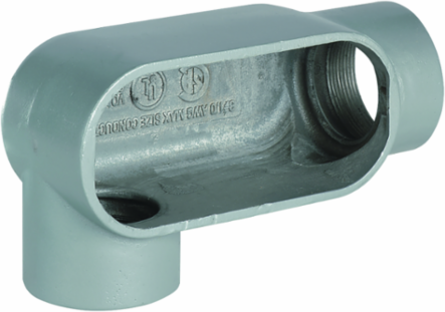

Killark LR77 2-1/2 Inch LR Hub Conduit Body, Iron, 12 Inch Length, NEMA 3 Seal
Killark LR77 2-1/2 Inch LR Hub Conduit Body, Iron, 12 Inch Length, NEMA 3 Seal
- MPN: LR77
- UPC: 783936011264
- PPN: HBL-LR77
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$575.35/ EA
Description
2-1/2" LR Hub, Iron Duraloy 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 2-1/2"
- Width
- 0.7 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Type
- Conduit Body
- Description - Invoice
- DURALOY7 2 1/2" LR COND BDY FE
- Harmonization Code
- 7307110200
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 13.22
- UL File Number
- E3397
- Series
- Duraloy 7 Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936011264
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Country of OriginMexico
Dimensions12 in x 0.7 in x 5 in
Height5 in
Length12 in
Engineering Drawing 1 Display TextLR77 Engineering Drawing
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
