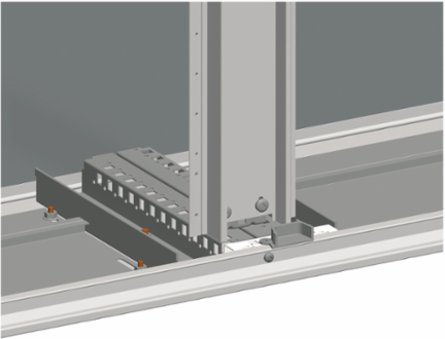

Schneider Electric NSYSTBR4 PanelSeT SM Adjustment Rail 400 mm Depth, 160 mm Width, Steel, Zinc Coated
- MPN: NSYSTBR4
- PPN: SCH-NSYSTBR4
- UNSPSC: 39121327
CAD
$58.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Spacial SM top/bottom adjustment rail. Depth is 400 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and 2 vertical uprights in 2-door enclosures. Steel made, zinc coated surface finish. 2 rails, fixing elements included.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Width | 6.3 in |
| Height | 1.97 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 4 rail, fixing elements |
| Product Destination | 2 vertical uprights in 2-door enclosures, 2 mounting plates in 2-door enclosures |
| Local Publishable Date | 2026-04-18 |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | by fixing element |
| Mounting Location | bottom and top centre of enclosure |
| Product Or Component Type | adjustment rail |
| Range | PanelSeT |
| Surface Finish | zinc coated |
| Height Nominal | 50 mm |
| Width Nominal | 160 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 8302423065 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Material | steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 4 |
| Returnability | No |
| Sustainable Packaging | No |
| Height Useful | 50 mm |
| Width Real | 160 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | adjustment rail |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
