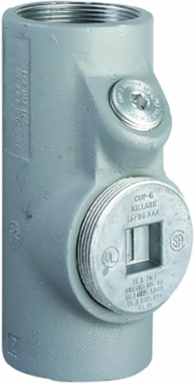

Killark ENY-6 2 Inch Aluminum Female/Female Seal Fitting, Powder Epoxy Coated, Class I, Div 1 & 2
Killark ENY-6 2 Inch Aluminum Female/Female Seal Fitting, Powder Epoxy Coated, Class I, Div 1 & 2
- MPN: ENY-6
- UPC: 783936111155
- PPN: HBL-ENY-6
- UNSPSC: 39131708
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$112.52/ EA
Description
2" ENY Seal Fitting Aluminum, Female/Female
Features
- Minimal turn radius for optimal spacing of both enclosures and conduit
- Large openings for ease of access to conductors for proper dam installation
- Engineered to latest 419 hub specifications for superior continuity and ingress protection
- Integral bushings to protect conductors during installation
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- General Literature Asset 1 Display Text
- Hazardous-rated seal-off fittings in expanded trade sizes and with improved design
- Country of Origin
- India
- Dimensions
- 15.88 in x 7.63 in x 5.5 in
- Height
- 5.5 in
- Length
- 15.88 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Type
- Sealing Fitting
- Description - Invoice
- SEAL FTG 2" AL FEMAL/FEMAL
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 1.49
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
ARRA CompliantContact Manufacturer
ColorGray
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size2"
Width7.63 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesENY Series
BOX SIZE7.750x8.750x9.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936111155
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
