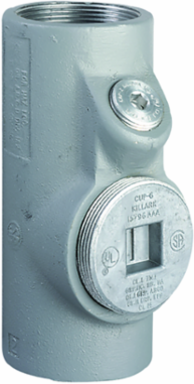

Killark ENY-6M 2 Inch Sealing Fitting Iron, Female/Female, Duraloy Iron, Powder Epoxy Finish
- MPN: ENY-6M
- UPC: 783936111360
- PPN: HBL-ENY-6M
- UNSPSC: 39131708
CAD
$250.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
2" ENY Seal Fitting Iron, Female/Female
Features
- Minimal turn radius for optimal spacing of both enclosures and conduit
- Large openings for ease of access to conductors for proper dam installation
- Engineered to latest 419 hub specifications for superior continuity and ingress protection
- Integral bushings to protect conductors during installation
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 3.5 in
- Length
- 8.75 in
- Type
- Sealing Fitting
- Weight
- 4.28 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ENY Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions8.75 in x 4.125 in x 3.5 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size2"
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Width4.125 in
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG 2" FE FEMAL/FEMAL
Harmonization Code7307193060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging4.28
MaterialIron
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936111360
NAICS Code3359323114
