Bell Out Door 5337-1 2-Gang Weatherproof Box, 5 Threaded Outlets, 1/2 Inch, UL Listed, Aluminum Construction
- MPN: 5337-1
- UPC: 050169533710
- PPN: HBL-5337-1
- UNSPSC: 39121305
CAD
$54.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

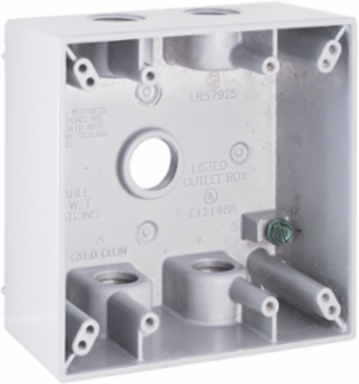

2-Gang Weatherproof Box, Five 1/2 in. Threaded Outlets, White
Features
- Rugged die-cast aluminum construction
- State-of-the-art powder coat finish providess maximum weatherability and scratch resistance
- Eight box mounting options with detachable lugs
- Includes two 1/2 in. closure plugs
- Internal hub threads comply with NEMA requirements and will accept all threaded fittings and threaded conduit
- Ground screw installed
- Multi-lingual instructions in each package
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| ChannelSightWidgetId | 705 |
| Product Type | Weatherproof Boxes & Extensions |
| Color | White |

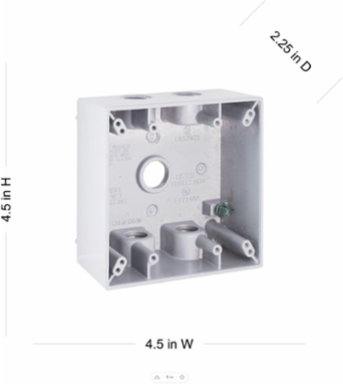

| Depth | 2.25 in |
| Standard | UL Listed;CSA Certified |
| Width | 4.5 in |
| Nema Rating | NEMA 3R |
| Thread Size | 1/2 in |
| Class Code | D16 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | D161D1610 |
| Construction | Metallic |
| Number of Gang(s) | 2-Gang |
| BOX SIZE | 8.5x16.188x6.5 (in) |
| Carton - Gross Weight per Pack | 12.636 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 12 EA |
| Item Package Type | Shrink |
| Package Height | 4.5 in |
| Package Weight | 1.053 lb. |
| Pallet - GTIN - Package | 70050169533719 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 1080 EA |
| Pallet Length | 42.000 in |
| Pallet Width | 48.000 in |
| Actual Depth | 2.25 in |
|---|---|
| Height | 4.5 in |
| Standard Package | 12 |
| Cubic Capacity | 31.0 cu.in |
| Number of Outlet | 5 |
| Type | 2-Gang |
| Material type | Metallic |
| Number Of Outlets | 5 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | WP BX 2G (5)1/2 OTLETS WHT |
| Harmonization Code | 7616995190 |
| Lead Time | 7 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum |
| Base Unit of Measure | EA |
| Box Type | 2-Gang |
| Carton - Number of Sub Packs | 12 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169533710 |
| Each - Pack Description | Each |
| Lowest Level UOM | Each |
| Package Length | 2.25 in |
| Package Width | 4.5 in |
| Pallet - Number of Sub Packs | 90 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169533715 |
| Pallet Height | 46.875 in |
| Pallet Weight | 1182.240 lb. |
| NAICS Code | 3359326103 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
| Certified Listed | UL Listed;CSA Certified |
|---|
