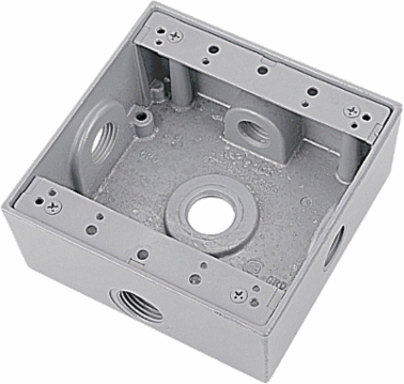

Red Dot 2IH5S2-1 Two Gang Weatherproof Box, 31.8 Cubic Inches, 5 Outlets, Aluminum

MPN: 2IH5S2-1
UPC: 042269393943
PPN: T-B-2IH5S2-1

$36.01

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 5 Outlets (2-Sides) with 1 on Top, Bottom, Both Sides, and Back

Features

Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
Clean cover edges provide good gasket sealing.
Precision cast and machined surfaces permit safer wire pulling.
Clear UL and cubic content markings speed approval by inspectors
Convenient mounting lugs for a variety of mounting methods
Securely fastened mounting plates reduce costly call backs

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121305 Weatherproof boxes
Brand Name	Red Dot
Special Features	Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
Standard	UL E28688
Material	Aluminum Die Cast
Cubic Capacity	31.8

IGCC	4429 Weatherproof boxes
Type	Device Boxes, Covers & Accessories
Application	Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Number Of Outlet	5
Color	Silver

European Specifications (ETIM)

ETIM	EC002601 Box/housing for built-in mounting in the wall/ceiling
Shape	Rectangular
Equipped with	None
Width	117.475mm
Mounting switching equipment	Screwing
Pipe locking	N
Inlet from the rear	Y
Material	Other
Cover	None
Sealable	N

Mounting method	Other
Construction type	Device connection box (round/square)
Length	115.8748mm
Depth	52.3748-52.3748mm
With screws	N
Pipe locking optional	N
Number of inlets	5
Colour	Other
Cover attachment	Not applicable
