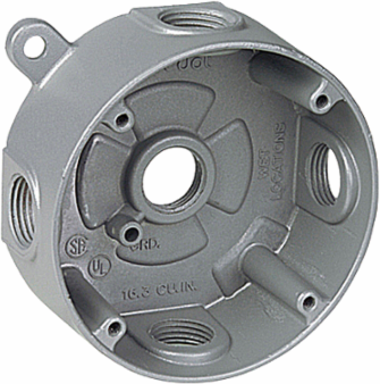

Red Dot S-47 Round Outlet Box, 5 Outlets, 4-1/8 Inch Diameter, 16.3 Cubic Inches, Aluminum
- MPN: S-47
- UPC: 004226971847
- PPN: T-B-S-47
CAD
$39.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Round Outlet Box, 16.3 Cubic Inches, 4-1/8 Inch Diameter, Hub Size 1/2 Inch, Silver, Aluminum, with 5 Outlets, Four on the Sides and One in Back
Features
- Clean cover edges provide good gasket sealing.
- Clear UL and cubic content markings speed approval by inspectors.
- Deep slotted stainless steel cover screws for faster installations.
- Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Junction box for branch conduits.
Specifications
European Specifications (ETIM)
- ETIM
- EC002601 Box/housing for built-in mounting in the wall/ceiling
- Shape
- Round
- Equipped with
- None
- Depth
- mm
- Pipe locking
- N
- Inlet from the rear
- Y
- Cover
- None
Mounting methodOther
Construction typeDevice connection box (round/square)
Diameter104.775mm
Mounting switching equipmentScrewing
Pipe locking optionalY
Surface protectionOther
Cover attachmentNot applicable
North American Specifications (UNSPSC)
- UNSPSC
- 39121305 Weatherproof boxes
- Brand Name
- Red Dot
- Special Features
- Precision cast and machined surfaces permit safer wire pulling.
- Number Of Outlet
- 5
- Color
- Silver
IGCC4429 Weatherproof boxes
TypeDevice Boxes, Covers & Accessories
StandardUL E28688
MaterialAluminum Die Cast
Cubic Capacity16.3 Cubic Inches
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 36
- Weight Uom
- 0.61 lbs. Each
Inner Dimensions (inches)4.25x4.25x2
Outer Dimensions (inches)13x9x10.5
