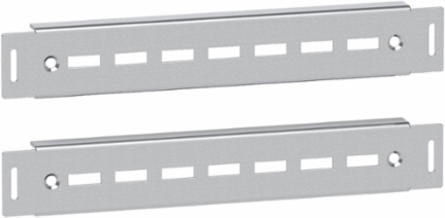

Schneider Electric NSYHLCR40 Heavy Duty Cross Rails, 400mm Width, Max Load 575kg, Set of 2
- MPN: NSYHLCR40
- PPN: SCH-NSYHLCR40
CAD
$181.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF heavy duty cross rails. 400 mm. Depth adjustable on 25 mm pitch. Fixing by screw M6. Bottom frame mounting support. Max. Load 475 kg. Galvanized sheet steel, 3mm thickness. 2 rails.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Width | 15.75 in |
|---|
Complementary Attributes
| Maximum Load | 575 kg |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | - D: 400 mm, - D: 400 mm, - D: 400 mm, - D: 400 mm |
| Local Publishable Date | 2024-01-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element M6 |
| Mounting Location | on structure of enclosure |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | heavy loading |
| Range | PanelSeT |
| Sustainable Packaging | No |
| Width Nominal | fixing centers: 350 mm |
| Accessory / Separate Part Category | mounting accessory |
| Package Weight(Lbs) | 2.094 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable with a pitch of 25 mm |
| Device Composition | fixing elements2 rails |
| Material | galvanised steel |
| Mounting Support | bottom frame |
| Product Or Component Type | rails for heavy load |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Thickness | 3 mm |
| Width Real | nominal: 400 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | rails for heavy load |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
