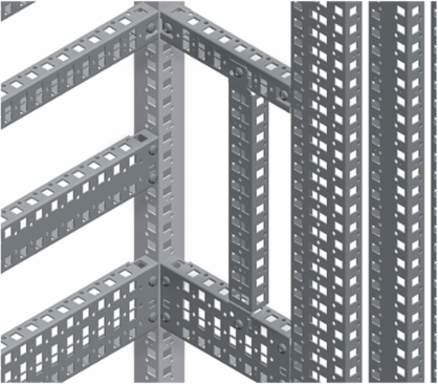

Schneider Electric NSYSUCR4090 Universal Cross Rails Set of 2, 39 mm x 900 mm, Galvanized Steel, Max Load 40 kg
- MPN: NSYSUCR4090
- PPN: SCH-NSYSUCR4090
CAD
$297.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

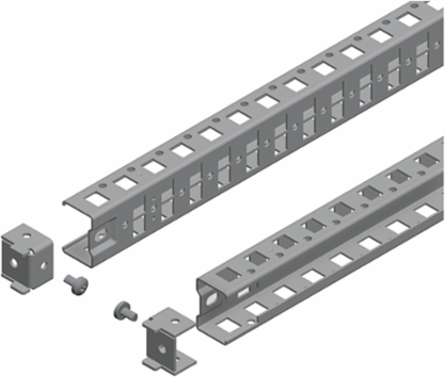

Spacial SF/SM universal perforated cross rails. 39 mm (1 row) x 900 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Egypt, Spain, India
- Width
- 1.57 in
Height31.77 in
Depth27 mm
Complementary Attributes
- Maximum Load
- 40 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 900 mm, - H: 900 mm, - H: 900 mm, - H: 900 mm
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.83658329
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 7.091233336
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- steel
- Mounting Support
- adaptation profile, on SM enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Recyclability Potential In %
- 98
- Height Useful
- useful: 807 mm
- Width Real
- 40 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9403999045
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.314157201, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.361869877, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable with a pitch of 25 mm
Device Compositionfixing elements2 cross rails4 supports
Fixing Modeby screws

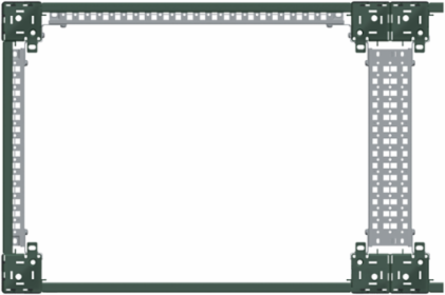

Mounting Locationbetween cross rails
Number Of Horizontal Rows1
Product Or Component Typeuniversal cross rail
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominalnominal: 900 mm
Width Nominal40 mm
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)1.632 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 11.6038437
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- universal cross rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
