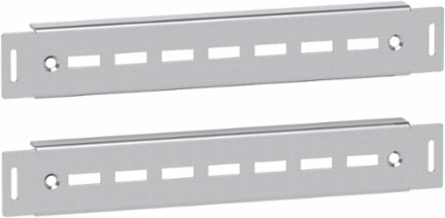

Schneider Electric NSYHLCR50 Heavy-Duty Cross Rails, 500mm Width, Max Load 525kg, Set of 2
Schneider Electric NSYHLCR50 Heavy-Duty Cross Rails, 500mm Width, Max Load 525kg, Set of 2
- MPN: NSYHLCR50
- PPN: SCH-NSYHLCR50
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$209.95/ EA
Description
Spacial SF heavy duty cross rails. 500 mm. Depth adjustable on 25 mm pitch. Fixing by screw M6. Bottom frame mounting support. Max. Load 475 kg. Galvanized sheet steel, 3mm thickness. 2 rails.
Features
- Can be fixed anywhere in the enclosure with a heavy load kit.
- Free space useful for thermal management.
- Nominal width of cross-rails must be 100 mm shorter than the associated heavy load kit width.
- Material: Steel
Specifications
Complementary Attributes
- Maximum Load
- 525 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 rails
- Mounting Support
- bottom frame, heavy load kit
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Package Weight Lbs
- 2.600 kg
- Product Or Component Type
- rails for heavy load
- Quantity Per Set
- set of 1
- Returnability
- No
- Thickness
- 3 mm
- Medium Desc
- Heavy load cross rails, PanelSeT SFN, Spacial SF, W500mm, set of 2
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- D: 500 mm, - D: 500 mm, - D: 500 mm, - D: 500 mm
Local Data StatusPublishable
Legacy WEEE ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Fixing Modeby fixing element M6
Mounting Locationon structure of enclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationheavy loading
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Adjustmentadjustable with a pitch of 25 mm
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- rails for heavy load
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 19.69 in
