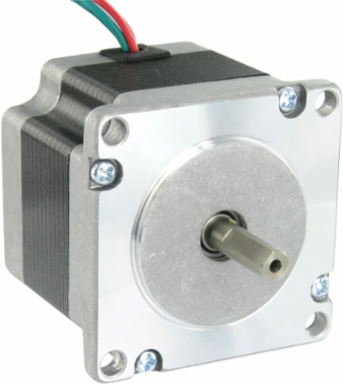

Schneider Electric BRS2573A300 2-phase stepper motor - 1.69 N.m - shaft Ø6.35 mm - L=76mm - without brake - 3A
- MPN: BRS2573A300
- PPN: SCH-BRS2573A300
CAD
$219.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-phase stepper motor - 1.69 N.m - shaft Ø6.35 mm - L=76mm - without brake - 3A
Documentation & Downloads
Specifications
Key Specifications
- Motor Type
- 2-phase stepper motor
- Product Or Component Type
- motion control motor
Range CompatibilityLexium SD2
Device Short NameBRS2
Complementary
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Holding Torque
- 1.69 N.m
- Maximum Mechanical Speed
- 1800 rpm
- Mounting Support
- flange
- Number Of Motor Stacks
- 3
- Resistance
- 0.95 Ohm winding)
- Centring Collar Depth
- 1.6 mm
- Holding Brake
- without
- Second Shaft
- without second shaft end
- Length
- 76 mm
- Centring Collar Diameter
- 38 mm
Number Of Mounting Holes4
Shaft Diameter6.35 mm
Mounting Holes Diameter5 mm
Supply Voltage Limits12-48 V DC
Rotor Inertia0.46 kg.cm²
Shaft Endsmooth shaft
Electrical Connectionflying lead
[In] Rated Current3 A
Shaft Length19 mm
Resolution200 steps number of full steps per revolution || 1.8 ° step angle
Motor Flange Size56.4 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without power derating
Ambient Air Temperature For Storage-25-70 °C
Ip Degree Of ProtectionIP20 IEC/EN 60034-1
Temperature ClassB winding IEC/EN 60034-1
