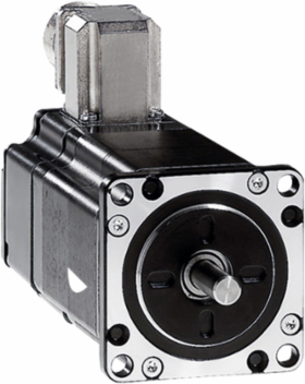

Schneider Electric BRS368W130FBA 3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - term box
- MPN: BRS368W130FBA
- PPN: SCH-BRS368W130FBA
CAD
$1098.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - term box
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France |
|---|
Physical Attributes
| Motor Flange Size | 57.2 mm |
|---|
| Shaft Length | 21 mm |
|---|
Complementary Attributes
| Line Rated Current | 0.9 A |
|---|---|
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Starting Frequency | 8.5 kHz |
| Maximum Axial Force Fa | 100 N tensile force)8.4 N force pressure) |
|---|---|
| Maximum Radial Force Fr | 25 N second shaft end)50 N first shaft end) |
Important Information Attributes
| Coefficient 1 0 | -105.3637 N.m, -105.3637 N.m |
|---|---|
| Coefficient 2 0 | -105.3637 N.m, -105.3637 N.m |
| Supply Voltage Description | single phase 230 V AC, single phase 115 V AC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.8296116502580756, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.8793476571672316, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 567 kg CO2 eq., 567.4018457610783 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Centring Collar Diameter | 38 mm |
| Coefficient 1 1 | 105.9343 N.m/rpm |
| Coefficient 2 1 | 105.9343 N.m/rpm |
| Coefficient M0 | 0.00027 N.m/rpm |
| Continuous Stall Torque | 1.53 N.m |
| Device Short Name | BRS3 |
| Holding Brake | with |
| Motor Type | 3-phase stepper motor |
| Mounting Support | flange |
| Number Of Motor Poles | 6 |
| Peak Stall Torque | 1.53 N.m |
| Product Or Component Type | motion control motor |
| Resolution | 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution |
| Rotor Inertia | 0.38 kg.cm² |
| Service Life In Hours | 20000 h bearing) |
| Shaft End | smooth shaft |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Time Constant | 4.6 ms |
| Type Of Cooling | natural convection |
| Voltage 1 | 115 V |
| Voltage 1 Speed 1 Max | 667.389709224139 rpm |
| Voltage 2 Speed 2 | 667.389709224139 rpm |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control at 80W during 40% and at 15 W during 30% for 10 years.To coordinate and synchronize motion control at 80W during 40% and at 15 W during 30% for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 93 |
| Accuracy Error [Angular] | 0.1 ° |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501512040 |
| Coefficient 1 2 | -34.5519 N.m/rpm², -34.5519 N.m/rpm² |
|---|---|
| Coefficient 2 2 | -34.5519 N.m/rpm², -34.5519 N.m/rpm² |
| Certificate Agency | EN 50347, IEC 60072-1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.342027601660965 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 52 kg CO2 eq., 51.93119882449916 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 66.6 mm |
| Coefficient 1 3 | 3.6901 N.m/rpm3 |
| Coefficient 2 3 | 3.6901 N.m/rpm3 |
| Coefficient M0 Max | 0.00027 N.m/rpm |
| Curve Type | semilog |
| Electrical Connection | terminal box |
| Holding Torque | 1.7 N.m |
| Mounting Holes Diameter | 5.2 mm |
| Nominal Torque | 1.5 N.m |
| Number Of Mounting Holes | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Resistance | 25 Ohm winding) |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft Diameter | 8 mm |
| Sizing Reference | BRS368 |
| Supply Voltage Limits | 230-230 V AC325-325 V DC |
| Temperature Class | F winding IEC/EN 60034-1 |
| Total Lifecycle Carbon Footprint | 623 kg CO2 eq. |
| Vibration Resistance | 20 m/s² maximumA EN/IEC 60034-14 |
| Voltage 1 Speed 1 | 667.389709224139 rpm |
| Voltage 2 | 230 V |
| Voltage 2 Speed 2 Max | 667.389709224139 rpm |
| Pep Code | ENVPEP111101EN-V3 |
| Pep Verification Date | 2025-09-18 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Length Total | 157 mm |
| Brake Pull-in Power | 8 W |
| Package Weight(Lbs) | 1.9 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-40 °C, -25-40 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating<= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111101EN-V3 |
| Ip Degree Of Protection | IP41 shaft bushing: conforming to EN/IEC 60034-5IP56 total except shaft bushing: conforming to EN/IEC 60034-5 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 15-85 % without condensation |
| Pep Verification Date | 2025-09-18 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 623.3840314946639 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP111101EN-V3 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | motion control motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
