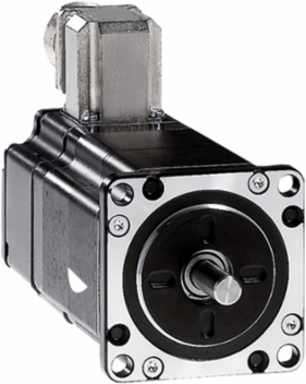

Schneider Electric BRS368W131FCA 3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - connector
Schneider Electric BRS368W131FCA 3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - connector
- MPN: BRS368W131FCA
- PPN: SCH-BRS368W131FCA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2064.55/ EA
Description
3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - connector
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Temperature Class
- F winding IEC 60034-1
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without power derating
StandardsIEC 50347 || IEC 60072-1
Vibration Resistance20 m/s² maximum || A IEC 60034-14
Type Of Coolingnatural convection
Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5 || IP56 total except shaft bushing: conforming to IEC 60034-5
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111101EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Nominal Torque
- 1.5 N.m
- Continuous Stall Torque
- 1.53 N.m
- Holding Brake
- with
- Second Shaft
- without second shaft end
- Brake Pull-In Power
- 8 W
- Resolution
- 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
- Maximum Starting Frequency
- 8.5 kHz
- Peak Stall Torque
- 1.53 N.m
- Holding Torque
- 1.7 N.m
- Mounting Holes Diameter
- 5.2 mm
- Resistance
- 25 Ohm winding)
- Electrical Connection
- connector
- [In] Rated Current
- 0.9 A
- Maximum Axial Force Fa
- 100 N tensile force) || 8.4 N force pressure)
Maximum Radial Force Fr25 N second shaft end) || 50 N first shaft end)
Rotor Inertia0.38 kg.cm²
Centring Collar Depth1.6 mm
Speed Feedback Resolution10000 points/turn
Shaft Length21 mm
Net Weight2 kg
Angular Acceleration200000 rad/s²
Time Constant4.6 ms
Number Of Mounting Holes4
Shaft Diameter8 mm
Service Life In Hours20000 h bearing)
Shaft Endsmooth shaft
Feedback Typesingle turn encoder
Accuracy Error+/- 6 arc min
Specifications
- Maximum Mechanical Speed
- 3000 rpm
- Number Of Motor Poles
- 6
- Length
- 157 mm
- Motor Flange Size
- 57.2 mm
- Supply Voltage Limits
- 230-230 V AC || 325-325 V DC
- Device Short Name
- BRS3
Mounting Supportflange
Product Or Component Typemotion control motor
Centring Collar Diameter38 mm
Motor Type3-phase stepper motor
Range CompatibilityLexium SD3
