Schneider Electric NSYSFND20122D Double plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1200mm

MPN: NSYSFND20122D
PPN: SCH-NSYSFND20122D

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1518.09/ EA

Qty:

Loading add to cart quantity...

Description

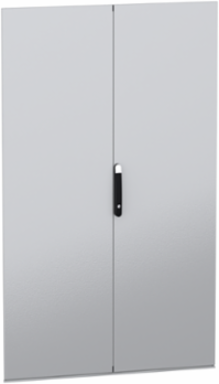

Double plain door, PanelSeT SFN, Spacial SM, for electrical enclosure H2000 W1200mm

Specifications

Environment

Ik Degree Of Protection: IK10

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2301018_V1

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc: Yes

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

Number Of Locks: 1

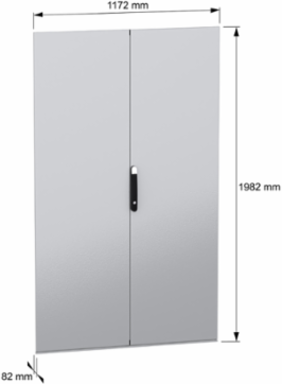

Height: nominal 1966 mm

Surface Finish: epoxy-polyester powder

Colour: grey RAL 7035)

Door Type: external plain

Door Opening Side: reversible 120 °)

Widthnominal 1169 mm

Materialsheet steel

Maximum Load60 kg/m²

Lock Typelock 5 mm double bar

Net Weight20.7 kg

Specifications

Enclosure Nominal Dimensions: H: 2000 mm W: 1200 mm

Accessory / Separate Part Category: enclosure accessory

Product Or Component Type: door

Device Application: multi-purpose

Mounting Location: front

Range CompatibilityPanelSeT PanelSeT SFN

Quantity Per Setset of 1

Device Composition1 lock with handle and 5 mm double bar insert || 1 locking bar system 4 points || 2 door || 1 locking bar system 2 points || 2 reinforcement frame || 8 hinges

RangePanelSeT
