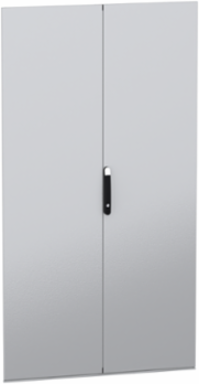

Schneider Electric NSYSFND22122D Double Plain Door for Electrical Enclosure H2200 W1200mm, IK10, 60 kg/m² Load

MPN: NSYSFND22122D
PPN: SCH-NSYSFND22122D

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1229.00/ EA

Qty:

Loading add to cart quantity...

Description

This double plain door, designed for Schneider Electric's electrical enclosures, offers robust protection and accessibility for your critical systems. With a sturdy construction that meets IK10 standards, it ensures exceptional impact resistance, making it ideal for environments where durability is key. Accommodating a load of up to 60 kg/m², this door not only reinforces the security of your electrical components but also facilitates easy access for maintenance and monitoring. Its dimensions of 2200mm in height and 1200mm in width provide a spacious entry point, allowing for seamless integration into various industrial applications.

Specifications

Maximum Load: 60 kg/m²

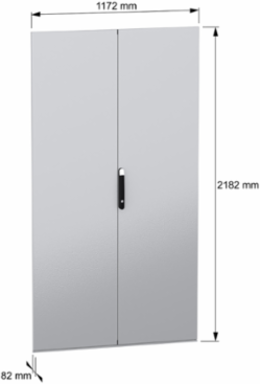

Enclosure Nominal Dimensions: H 2200 mm, W 1200 mm

IK Degree of Protection: IK10

Number of Locks: 1

Door Opening Side: reversible 120°

Surface Finish: epoxy-polyester powder

Device Composition: 1 lock with handle and 5 mm double bar insert, locking bar systems (4 points and 2 points), 2 doors, 2 reinforcement frames, 8 hinges

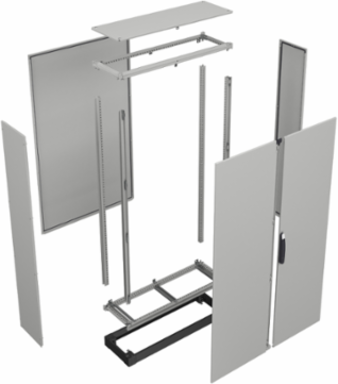

Compatible Enclosure: PanelSeT, PanelSeT SFN

Product Type: double plain door

Height2166 mm (nominal)

Width1169 mm (nominal)

Lock Type5 mm double bar lock

Door Typeexternal plain

Materialsheet steel

Net Weight29.7 kg

ComplianceGreen Premium, REACh free of SVHC, EU RoHS proactive, Mercury free, China RoHS proactive

Mounting Locationfront
