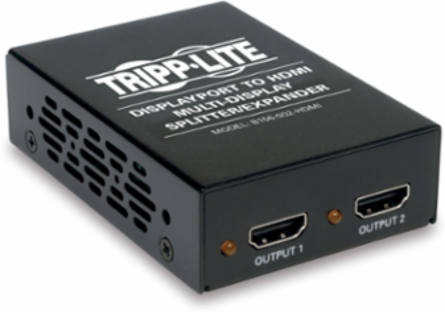

Tripp Lite B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub, 4K @ 60 Hz UHD, TAA
Tripp Lite B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub, 4K @ 60 Hz UHD, TAA
- MPN: B156-002-HDMI
- UPC: 037332175892
- PPN: TRP-B156-002-HDMI
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$134.66/ EA
Description
Ideal for digital signage at schools, airports and other public venues that require a DisplayPort video signal to appear on two separate HDMI monitors or expanded across both monitors as a video wall.
Features
- Compliant with DisplayPort 1.2
- Splits or expands a DisplayPort audio/video signal on two HDMI monitors
- Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one
- Supports 4K x 2K Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (30 Hz) - see System Requirements
- Supports up to 48-bit Deep Color (16 bits per channel)
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Splitting, Extending, Multi-Display
- Video Standards and Protocols
- Installation
- Mounting Options
- TAA-Compliant for GSA Schedule Purchases
Specifications
Features & Specifications
- Max Supported Video Resolution
- 3840 x 2160 (4K x 2K) @ 60Hz
- HDMI Specification
- 1.4
- Driver Required
- No
- EDID Compatible
- Yes
Displayport Specification1.2
Audio SpecificationDTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Max Supported Color Depth48-bit Deep Color
TechnologyDisplayPort; HDMI
Certifications
- Certifications
- FCC, RoHS, and REACH
Connections
- Ports
- 2
- Side B - Connector 1

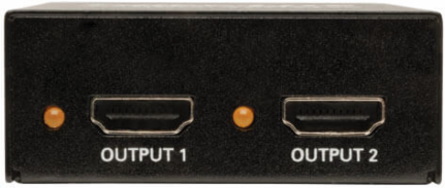

- (2) HDMI (FEMALE)
- Contact Plating
- Gold
Side A - Connector 1DISPLAYPORT (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 1.04
- Unit Packaging Type
- Box
Material of ConstructionSECC
Shipping Dimensions (hwd / in.)2.20 x 6.50 x 7.20
Unit Dimensions (hwd / in.)3.6 x 5.3 x 1.0
Unit Weight (lbs.)0.86
User Interface, Alerts & Controls
- LED Indicators
- (x2) Orange (Monitor Signal); Green (Power)
Input
- External Power Supply Input Specs (V / Hz / A)
- 100-240V, 50/60Hz, 0.5A
- External Power Supply Cord Length (ft.)
- 4.5
- External Power Supply Plug(s)
- NEMA 1-15P North America
External Power Supply Output Specs (V / A)5V, 2A
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsFCC; UL; cUL
Environmental
- Operating Temperature Range
- 14 to 167 F (-10 to 75 C)
- Relative Humidity
- 0% to 85%, Non-Condensing
- Power Consumption (Watts)
- 4.1W
Storage Temperature Range-4 to 176 F (-20 to 80 C)
BTUs14 BTU/Hr
Overview
- UPC Code
- 037332175892

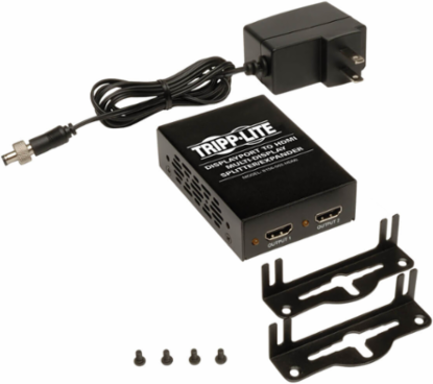

AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
