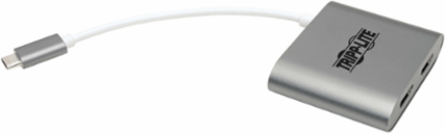

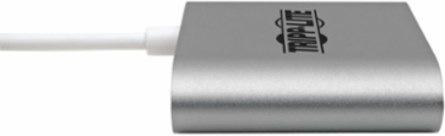

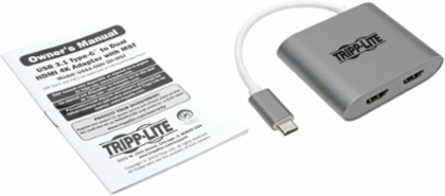

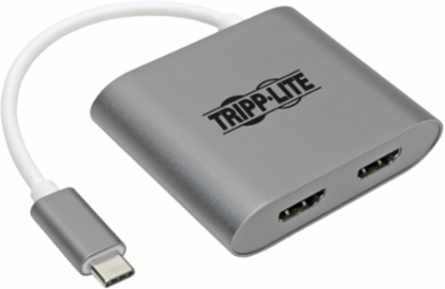

Tripp Lite U444-06N-2H-MST USB-C Dual HDMI 4K Adapter, 3840x2160 @ 30Hz, 2 Ports, Gray
- MPN: U444-06N-2H-MST
- UPC: 037332237330
- PPN: TRP-U444-06N-2H-MST
CAD
$62.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dual HDMI 4K Adapter, 3840x2160 @ 30Hz, 2 Ports, Gray
Features
- Converts audio/video signals from sources supporting USB DisplayPort Alt Mode

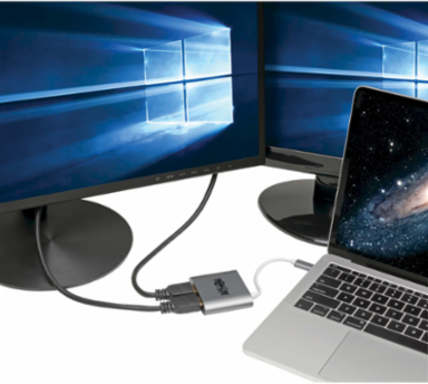

- Plays video on two displays simultaneously for multitasking and increasing productivity
- Delivers Ultra HD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- USB-C to HDMI Cable Connects Two 4K HDMI Displays to Your USB-C or Thunderbolt 3 Device
- Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
- Multi-Stream Transport (MST) Allows Connection of Multiple Displays
- Enjoy the Clarity of True 4K Video with 7.1-Channel Audio
- Reversible USB-C Connector Attaches in Either Direction
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
- Slim Design Is Ideal for Travel
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | 3840 x 2160 @ 30 Hz |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| Max Supported Color Depth | 36-bit Deep Color |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | No |
| Technology | HDMI; USB; USB 3.1 (Gen 1) |
Certifications
| Certifications | Certified to meet REACH, RoHS, CE and FCC |
|---|
Connections
| Ports | 2 |
|---|---|

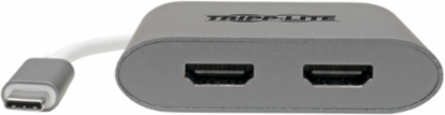

| Side B - Connector 1 | (2) HDMI (FEMALE) |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC, Aluminum |
| Unit Packaging Type | Box |
| Color | Gray |
|---|---|
| Unit Dimensions (hwd / in.) | .61 x 2.62 x 2.13 |
| Unit Weight (lbs.) | 0.1698 |
User Interface, Alerts & Controls
| LED Indicators | N/A |
|---|
Input
| Built-In Cable Length (in.) | 4.3 |
|---|---|
| Product Length (in.) | 6 |
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 ~ 113F (0 ~ 45C) |
|---|---|
| Operating Humidity Range | 10% ~ 85% RH (Non-Condensing) |
| Storage Temperature Range | 14 ~ 158F (-10 ~ 70C) |
|---|---|
| Storage Humidity Range | 5% ~ 90% RH (Non-Condensing) |
Overview
| UPC Code | 037332237330 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
