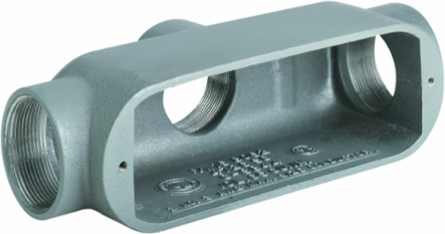

Killark OTB-6 2 Inch Aluminum Conduit Body with NPT Tapered Threads, Raintight, 70 cu. in. Volume
Killark OTB-6 2 Inch Aluminum Conduit Body with NPT Tapered Threads, Raintight, 70 cu. in. Volume
- MPN: OTB-6
- UPC: 783936530161
- PPN: HBL-OTB-6
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$172.82/ EA
Description
2" TB Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 70 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 2"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 70 cu. in.
- Width
- 4 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2" "TB" TYPE AL CONDUIT BODY
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 2.29
- UL File Number
- E3397
- Series
- O Series
- BOX SIZE
- 5.250x17.500x11.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936530161
- Item Package Type
- K-PAK (cover & gasket included)
Dimensions12 in x 4 in x 5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height5 in
Length12 in
TypeConduit Body
Engineering Drawing 1 Display TextOTB-6 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternTB
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
