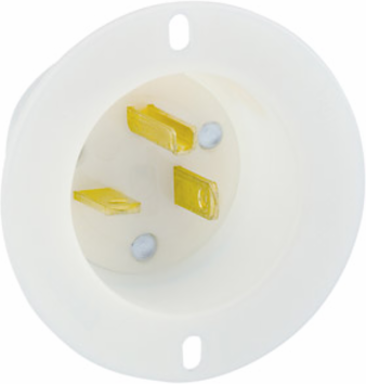

Leviton 15378-C 20 Amp 125 Volt Straight Blade Flanged Inlet Receptacle, NEMA 5-20P, Nylon
- MPN: 15378-C
- UPC: 078477795989
- PPN: LEV-15378-C
CAD
$40.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Flanged Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Back Wired, Thermoplastic Nylon Strap, - White
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
- UL Fed Spec WC-596
- File E13393
CSA C22.2 No. 42File LR-406
UL 498File E13399
WarrantyLimited Lifetime Warranty
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Body Material
- Super Tough Nylon
- Terminal Screws
- Brass
Blades/ContactsSolid Brass
ColorWhite
Wire ModuleNylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.18-10 AWG
Torque Range10-14 in-lbs
Product Features
- Brand
- Black and White
- Face Material
- Nylon
- Strap Material
- Thermoplastic Nylon
Device TypeStraight Blade Flanged Inlet

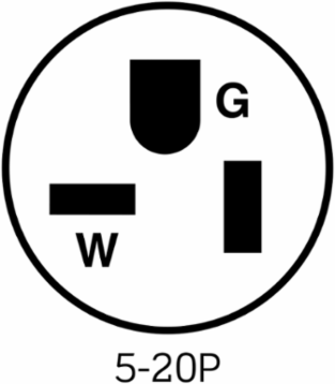

NEMA5-20P
TerminationBack
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
