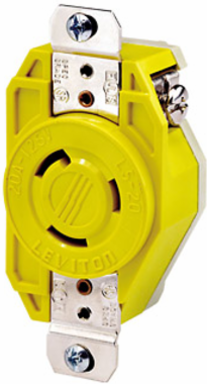

Leviton 23CM-10 20 Amp Flush Mount Locking Receptacle NEMA L5-20R, Corrosion Resistant, Yellow
Leviton 23CM-10 20 Amp Flush Mount Locking Receptacle NEMA L5-20R, Corrosion Resistant, Yellow
- MPN: 23CM-10
- UPC: 078477106686
- PPN: LEV-23CM-10
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.82/ EA
Description
20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. For use in marine and industrial environments.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Nylon
- Color
- Yellow
- Face Material
- Nylon
- Grounding Screw
- Chromated Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Nickel-Plated Brass
Body MaterialValox 357
Cover MaterialValox 357
Ground ContactsNickel-Plated Brass
Line ContactsNickel-Plated Brass
Terminal ClampsNickel-Plated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- V-0-Max
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
