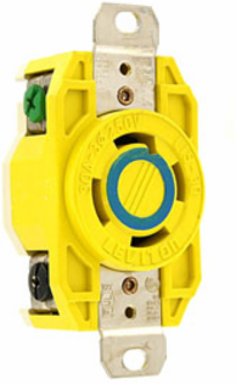

Leviton 27CM-20 30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
Leviton 27CM-20 30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
- MPN: 27CM-20
- UPC: 007847710819
- PPN: LEV-27CM-20
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$141.14/ EA
Description
30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, Corrosion-Resistant - YELLOW
Specifications
Standards and Certifications
- NOM
- 057
- UL
- 498
- ANSI
- C-73
NEMAWD-1 & WD-6
CSAC22.2 No. 42
UL Fed SpecW-C-596
Material Specifications
- Line Contacts
- Nickel-Plated Brass
- Color
- Yellow
- Ground Contacts
- Nickel-Plated Brass
- Grounding Screw
- Chromated Brass
- Body Material
- Valox 357
- Strap Material
- Nickel-Plated Brass
Face MaterialNylon
Cover MaterialValox 357
Base MaterialNylon
Terminal ScrewsNickel-Plated Brass
Terminal ClampsNickel-Plated Brass
Mechanical Specifications
- Terminal ID
- Marked on Device
- Terminal Accom.
- 14-8 AWG
Product IDRatings and NEMA I.D. permanently marked on device
TerminationBack
Product Features
- Warranty
- Lifetime Limited
- NEMA
- L15-30R
- Brand
- V-0-Max
- Base Material
- Nylon
Face MaterialNylon
ColorYellow
Country Of OriginMexico
TerminationBack
Warranty
- Warranty
- Lifetime Limited
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 250 VAC
- Phase
- 3-Phase
Wire4
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Current LimitingFull Rated Current
GroundingGrounding
AC Horsepower Ratings
- At Rated Voltage
- 3 HP
