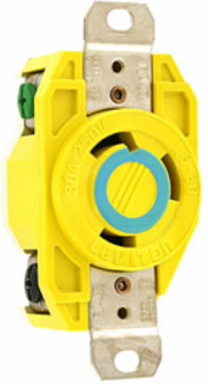

Leviton 26CM-20 30 Amp 250 Volt NEMA L6-30R Locking Receptacle, Nylon, 2P, 3W, Yellow
- MPN: 26CM-20
- PPN: LEV-26CM-20
CAD
$123.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp 250 Volt NEMA L6-30R Locking Receptacle, Nylon, 2P, 3W, Yellow
Documentation & Downloads
Specifications
Standards and Certifications
- NOM
- 057
- UL
- 498
- ANSI
- C-73
NEMAWD-1 & WD-6
CSAC22.2 No. 42
UL Fed SpecW-C-596
Material Specifications
- Line Contacts
- Nickel-Plated Brass
- Color
- Yellow
- Base Material
- Nylon
- Terminal Screws
- Nickel-Plated Brass
- Strap Material
- Nickel-Plated Brass
Face MaterialNylon
Ground ContactsNickel-Plated Brass
Grounding ScrewChromated Brass
Terminal ClampsNickel-Plated Brass
Mechanical Specifications
- Terminal ID
- Marked on Device
- Terminal Accom.
- 14-8 AWG
Product IDRatings and NEMA I.D. permanently marked on device
TerminationBack
Product Features
- Warranty
- Limited Lifetime Warranty
- NEMA
- L6-30R
- Brand
- V-0-Max
- Base Material
- Nylon
Face MaterialNylon
ColorYellow
Country Of OriginMexico
TerminationBack
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Wire3
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Current LimitingFull Rated Current
GroundingGrounding
AC Horsepower Ratings
- At Rated Voltage
- 2 HP
