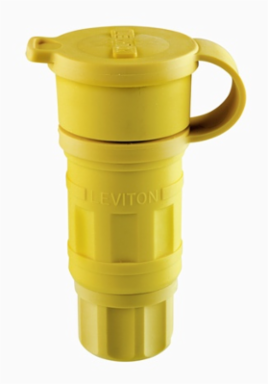

Leviton 27W75 Wetguard Watertight Locking Connector, 20 Amp, 250 Volt, NEMA L15-20R, IP69K
- MPN: 27W75
- UPC: 078477967799
- PPN: LEV-27W75
CAD
$127.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

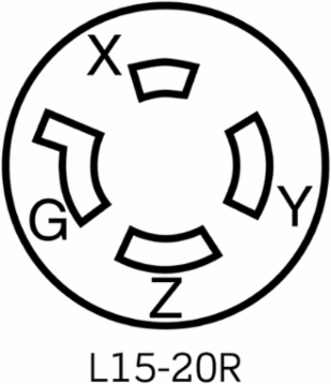

20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Phase
- 3-Phase
- Poles
- 3
- Device Type
- Locking Connector
- IP Rating
- IP66, IP67, IP69K
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Material
- EPTR Rubber, Nickel-Plated Brass, Stainless Steel 300, Nylon, Santoprene TPV
- Terminal Accommodation
- #16 to #10
- Flammability Rating
- V-2 per UL 94
- CSA C22.2 No. 42
- File LR-406
- Color
- Yellow
- Country of Origin
- Mexico
- Terminal Screws
- Electroless Nickel-coated Brass
- Compression Nut, Strain Relief
- Nylon
- Wire Module
- Nylon
Voltage250 VAC
NEMAWD-6
Wires4
Torque Range12-14 in-lbs
Operating Temperature-40°C to 60°C
Dielectric VoltageWithstands 2000 V per UL498
GroundingGrounding
Cord Grip Range.375 to .875 in
ComplianceUL Listed, CSA Certified, RoHS Compliant, ANSI C-73, NOM 057
UL498
EnvironmentWet
Assembly ScrewsStainless Steel 300
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Body InteriorNylon
BrandWetguard
