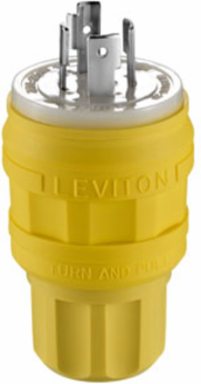

Leviton 26W75 Wetguard Watertight Locking Plug
Leviton 26W75 Wetguard Watertight Locking Plug
- MPN: 26W75
- UPC: 078477968093
- PPN: LEV-26W75
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$96.68/ EA
Description

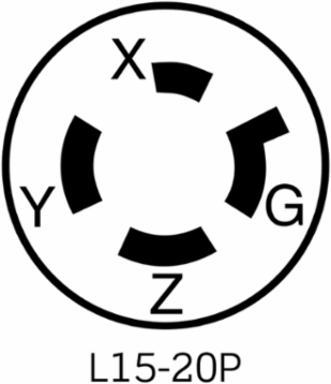

20 Amp, 250 Volt 3-Phase, NEMA L15-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Interior
- Nylon
- Bushing
- Santoprene TPV
- Terminal Screws
- Electroless Nickel-coated Brass
Blades/ContactsNickel-Plated Brass
Body MaterialEPTR Rubber
Compression Nut, Strain ReliefNylon
Wire ModuleNylon
Mechanical Specifications
- Cord Grip Range (in)
- .375-.875
- Terminal Accom.
- #16 to #10
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Wetguard
- Device Type
- Locking Plug
ColorYellow
Standards and CertificationsUL/CSA
Environmental Specifications
- Environment
- Wet
- IP Rating
- IP66, IP67, IP69K
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 4
Current LimitingFull Rated Current
GroundingGrounding
Pole3
Voltage250 VAC
