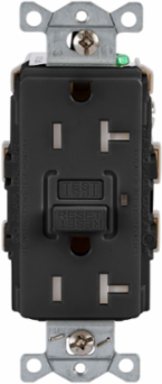

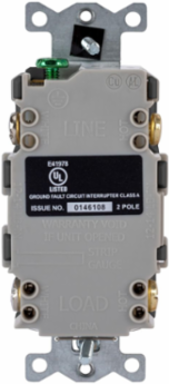

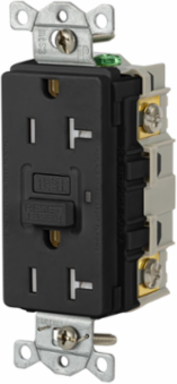

Bryant GFRTR20BLK GFCI Receptacle, 20A 125V, 5-20R, Tamper-Resistant, Black
- MPN: GFRTR20BLK
- UPC: 883778999635
- PPN: HBL-GFRTR20BLK
CAD
$50.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
GFCI Receptacle, 20A 125V, 5-20R, Tamper-Resistant, Black
Features
- Engineered with patented AUTOGUARD self-test technology, this commercial-grade receptacle continuously monitors its own internal circuitry every 30 seconds for ground fault protection capability. In the rare event that critical internal components fail or protective capabilities are lost, the system completely cuts off power to the outlet face to guarantee maintenance personnel and occupants are fully protected from unexpected electrical shock hazards.
- To eliminate terminal damage and prevent dangerous miswiring on the job site, this advanced device incorporates a smart power-denial safety feature. If the incoming "Line" and downstream "Load" wires are accidentally reversed during installation, power is automatically denied to the outlet face, protecting connected electronics from diagnostic errors and saving electricians valuable troubleshooting time.
- Rated for 20A at 125V AC, this 2-pole, 3-wire grounding decorator-style duplex outlet fits standard industrial cutout openings and electrical boxes. The sleek, professional black finish blends cleanly into modern architectural layouts or server racks, while providing the robust amperage necessary to power demanding commercial appliances, diagnostic tools, and heavy IT equipment without overloading.
- Built with a robust internal shutter system that prevents foreign objects from inserting into the contacts, this duplex receptacle complies fully with NEC 406.12 and NEC 517-18(c). It offers absolute peace of mind for high-traffic office spaces, hospitality environments, or pediatric care areas without causing plug-insertion friction.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20A
- NEMA Rating
- 5-20R
- Wires
- 3-Wire Grounding
- Material
- Nylon, Brass, Zinc Plated Steel
- Color
- Black
Voltage125V
Poles2-Pole
TypeTamper-Resistant
ComplianceMeets All NEC Requirements
