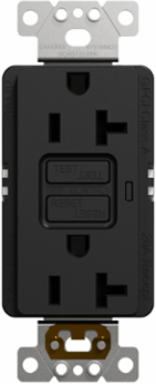

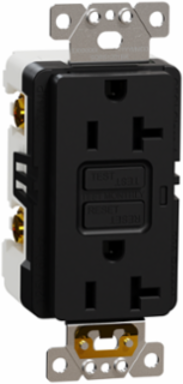

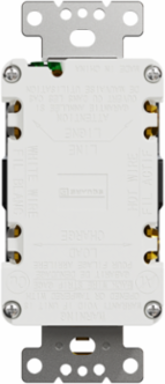

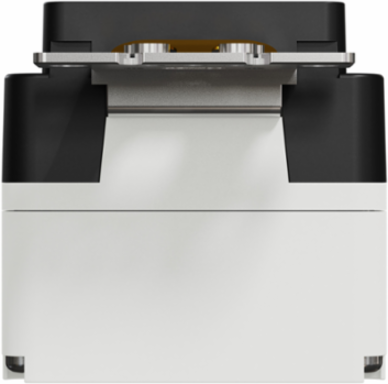

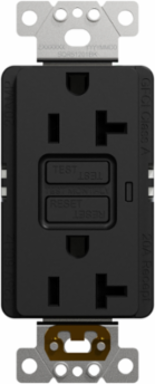

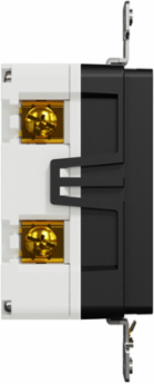

Schneider Electric SQR51201BK X Series GFCI Duplex Receptacle, 20A 125V, Tamper Resistant, Matte Black
- MPN: SQR51201BK
- UPC: 785901544777
- PPN: SCH-SQR51201BK
CAD
$29.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series GFCI Duplex Receptacle, 20A 125V, Tamper Resistant, Matte Black
Features
- Engineered with advanced Ground Fault Circuit Interrupter technology, this 20-amp receptacle detects dangerous ground faults and instantly cuts power to prevent electrical shocks. It gives homeowners and electrical contractors peace of mind when installing high-capacity circuits in splash-prone residential or commercial environments.
- Part of the sleek Square D X Series, the matte black finish eliminates reflective glare and resists fingerprints, blending perfectly into high-end modern interiors. By pairing this decorator duplex outlet with a snap-on X Series wall plate (sold separately), you create a completely flush, screwless presentation that elevates standard wall hardware.
- Fully certified to cULus, UL 498, and UL 943 standards, this heavy-duty thermoplastic receptacle features robust, code-compliant tamper-resistant internal shutters. The discrete black shutters block foreign objects from entering the slots while allowing smooth plug insertion, preventing accidental injuries without sacrificing your room's clean look.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Chile, China |
|---|
| Depth | 41 mm |
|---|
Physical Attributes
| Color | Black, Black |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Device Application | power supply |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | GFCI |
| Range | Square D X Series |
| Socket Additional Information | tamper resistant |
| Surface Finish | Matte |
| Sustainable Packaging | Yes |
| Ac Current Rating | 20 A |
| Width Nominal | 42 mm |
| [Ie] Rated Operational Current Ac | 20 A |
| Connections - Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 136 g |
| Warranty (In Months) | 24 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Local Publishable Date | 2026-06-23 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Body Type | decorator |
| Earth Circuit | self earthing |
| Market Segment | commercial |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Outlet Standard | NEMA |
| Product Or Component Type | socket-outlet |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Number | 2 |
| Surface Treatment | painted |
| Targeted Channel | distributor |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 125 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536308000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|
| ETIM 9 | EC000125 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
