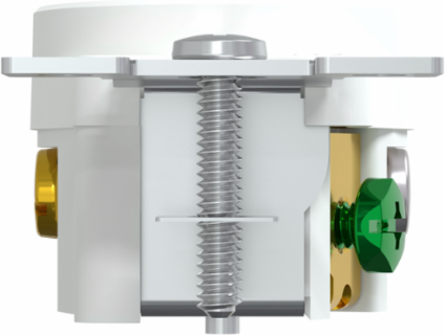

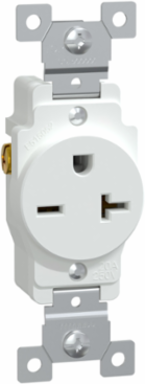

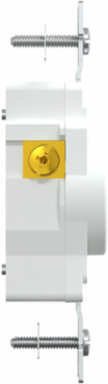

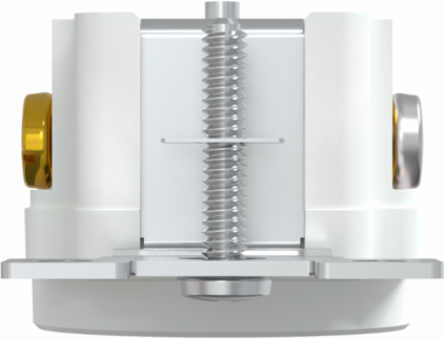

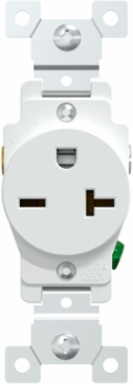

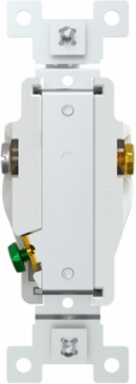

Schneider Electric SQR42205WH Socket-outlet, X Series, 20A, 250V, standard, single, residential, white, matte finish
- MPN: SQR42205WH
- PPN: SCH-SQR42205WH
CAD
$33.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series 20A 250V Heavy Duty Single Outlet provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy fast wiring with a grounding strap hole designed for speed wrapping installation. The outlet is commercial grade, ideal for devices that stay plugged in. Its Ue rated operational voltage is 250VAC. Its Ie rated operational current is 20A.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico
Depth29 mm
Physical Attributes
- Color
- White
Main Color Tintwhite
Important Information Attributes
- Persona Type Ids
- EUA, LC, SC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Body Type
- standard
- Market Segment
- residential
- Mounting Mode
- by screws
- Network Type
- AC
- Number Of Modules
- 1
- Outlet Standard
- NEMA
- Quantity Per Set
- 1 piece
- Socket Number
- 1
- Sustainable Packaging
- No
- Main Color Tint
- white
- Width Nominal
- 35 mm
- [Ie] Rated Operational Current Ac
- 20 A
- Connections - Terminals
- phase and neutral 2 screw terminal copper
- Package Weight(Lbs)
- 75 g
- Warranty (In Months)
- 18
Persona Type NamesConsumer, Contractor, Electrician
Local Publishable Date2026-06-23
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialplastic: strap
Network Frequency60 Hz
Number Of Gangs1 gang
Outlet Poles Configuration2P + E
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Surface FinishMatte
Targeted Channeldistributor
Height Nominal104 mm
Certificate AgencycULus
[Ue] Rated Operational Voltage250 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536698000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Overview Attributes
- Device Presentation
- mechanism with fixing frame
