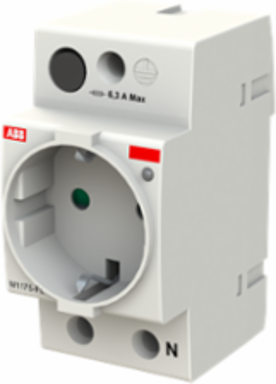

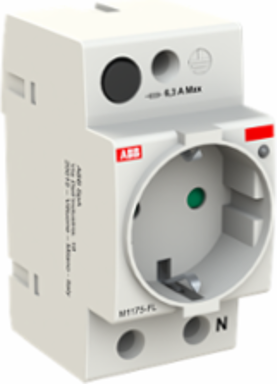

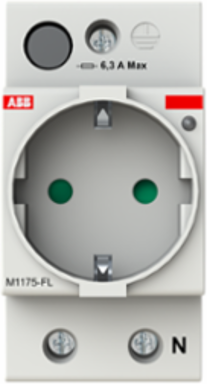

ABB 2CSM214000R0721 M1175-FL Socket outlet
- MPN: 2CSM214000R0721
- UPC: 888614400689
- PPN: ABB-2CSM214000R0721
CAD
$71.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This modular socket allows the connection of devices, tools or electrical and electronic non modular equipments in civil and industrial electrical switchboards.
Specifications
Installation
- Instructions and Manuals
- No document needed
Dimensions
- Width in Number of Modular Spacings
- 2.5
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.160 kg
Product Net Width0.044 m
Product Net Depth / Length0.070 m
Built-In Depth (t2)60 mm
Technical
- Standards
- German Schuko Standard
- Rated Current (In)
- 16 A
- Power Consumption (@Pcons)
- Indicator Light 2 W
- Number of Active Pin Terminals
- 2
- Fuse Type
- aM
- Options Provided
- Phase protection fuse and Indicator light for power supply presence. Safety shutters included
- Remarks
- Reference standards for fuse breaking capacity: IEC EN 60127
- Lamp Color
- Green
- Fuse Size
- 5 x 20_MMT$
Rated Voltage (Ur)250 V AC
Rated Frequency (f)50/60 Hz
Power Lossat Rated Operating Conditions per Pole 0.6 W
Tightening Torque1.2 N·m
Lamp TypeFluorescent torpedo-shaped lamp
Model NumberProtective contact (SCHUKO)
ColorGrey
Cable Cross-SectionMinimum 2.5 mm²Maximum 16 mm²
Classifications
- ETIM 9
- EC001663 - Socket outlet for distribution board
- WEEE B2C / B2B
- Business To Consumer
- eClass
- V11.0 : 27142305
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885366990
Object Classification CodeX
Environmental
- Ambient Air Temperature
- Operation -25…+35 °CStorage -40…+70 °C
- RoHS Status
- Following EU Directive 2011/65/EU
- REACH Declaration
- 9AKK108467A9482
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
Degree of ProtectionIP20
RoHS Information9AKK107492A6968
Environmental InformationSee RoHS Information
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.54 kg
Package Level 1 Unitsbox 4 piece
