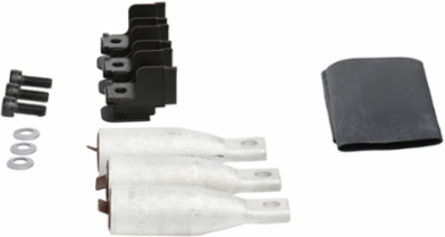

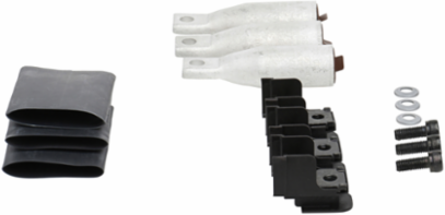

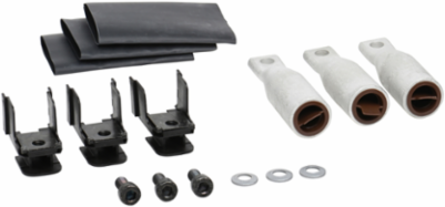

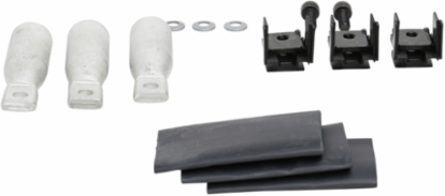

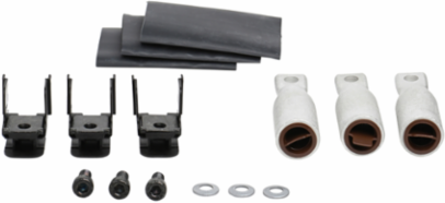

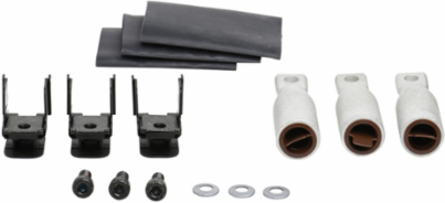

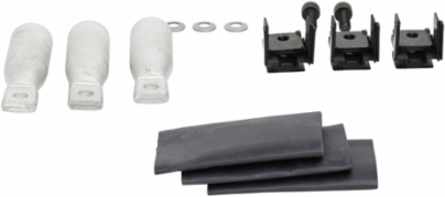

Square D YA250J35 PowerPacT J Compression Lug Kit, 250A, 3 Pole, Aluminum
- MPN: YA250J35
- UPC: 785901602996
- PPN: SCH-YA250J35
CAD
$400.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a connection accessory for PowerPacT J-Frame I-Line circuit breakers. This compression lug kit, has a rated current of 250A and is made of aluminum. This lug kit is for a 3 pole circuit breaker. This lug kit accepts AWG 3/0 / 350 kcmil wire, aluminum/copper. This accessory complies with UL and CSA standards This product comes in a set of 3. With a tightening torque of 14.7-15.8 Nm.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Line Rated Current | 250-250 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Location Of Connection | downstream, upstream |
| Certificate Agency | UL, CSA |
| Local Publishable Date | 2026-04-10 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 3/0 AWG...350 kcmil aluminium/copper |
| Material | aluminium |
| Product Or Component Type | compression lug |
| Range Of Product | PowerPact J |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Mode | unit mount, compression |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 3 |
| Returnability | Yes |
| Tightening Torque | 14.7-15.8 N.m (3/0 AWG...350 kcmil) |
| Accessory / Separate Part Category | connection accessory |
| Package Weight(Lbs) | 0.5 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | compression lug |
|---|
| Range Of Product | PowerPact J |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
