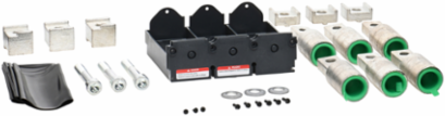

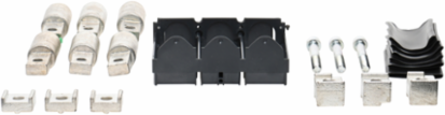

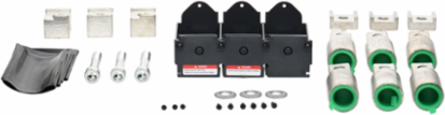

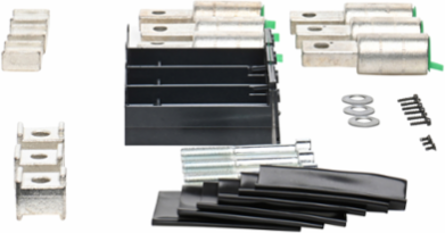

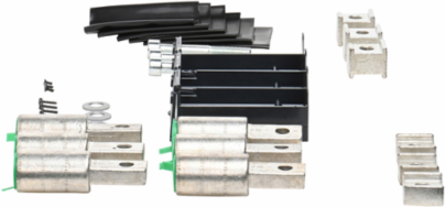

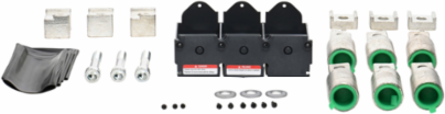

Square D YA600L52K3 PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum

PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/fb8abf3b34dbba2c673dedc987c6498a38fe8162-medium.png

PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/48ddf360192deadd83ce309b83a3b542b18b0400-medium.png

PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/34632ccb27620bb19cbfe0b5d737dd212b4039dd-medium.png

PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/136ab3f2648ac54d88d8b62c2e3729707336cf93-medium.png

PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum

Square D YA600L52K3 PowerPact L Lug Kit, Compression, 600A, 3 Pole, Aluminum

MPN: YA600L52K3
UPC: 785901753766
PPN: SCH-YA600L52K3

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1334.18/ EA

Qty:

Loading add to cart quantity...

Description

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. This compression lug kit is designed to be used with PowerPact L-frame 3 pole circuit breakers with Electronic trip units This lugs have rating as 620A for aluminium and 760a for copper at 75°C and needed 2 of each per terminal. Terminal wire range for this accessory is 2 wires of 2/0 AWG - 500 kcmil aluminium or copper Connector accessory is coming as 6 lugs per kit

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1406010EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI1406010EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Specifications

Range Of Product: PowerPact L

Quantity Per Set: set of 6

Accessory / Separate Part Categoryconnection accessory

Product Or Component Typemechanical lug

Environment

Product Certifications: UL || CSA

Complementary

[In] Rated Current: 600-600 A

Tightening Torque: 50-50 N.m 70-240 mm² AWG 2/0...500 kcmil)

Material: aluminium

Mounting Modeunit mount || compression

Awg GaugeAWG 2/0...500 kcmil aluminum/copper
