Square D

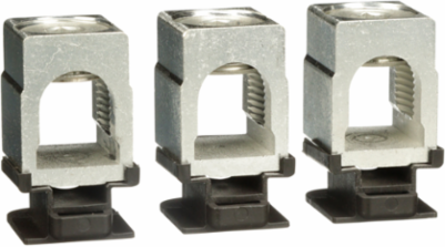

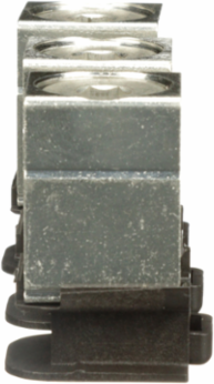

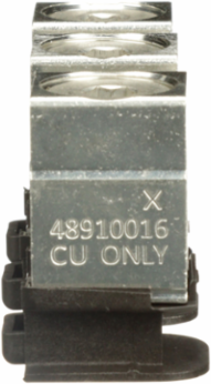

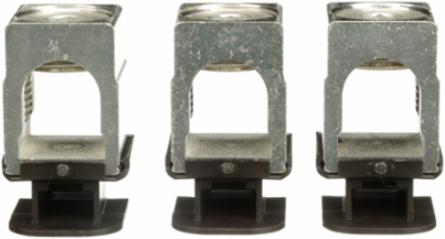

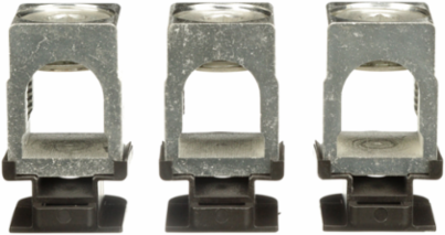

Square D CU250JD Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3

Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3
Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3
Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3
Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3
Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3
  • MPN: CU250JD
  • UPC: 785901467861
  • PPN: SCH-CU250JD

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$578.69/ EA

Description

Lighting Panelboard Circuit Breakers from Square D™ by Schneider Electric™, EGB34020, this circuit breaker is proven effective and reliable, provide a wide variety of robust features for use in Square D NF panelboards. Equipped with HACR, HID rated circuit breaker with G Breaking capacity code. Provide short-circuit and overload protection.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1406010EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions

Environment

Product Certifications
CSA || UL

Complementary

[In] Rated Current
250-250 A
Location Of Connection
downstream || upstream
Material
copper
Tightening Torque28-28 N.m 50-150 mm² AWG 1/0...300 kcmil)
Awg GaugeAWG 1/0...300 kcmil copper

Specifications

Range Of Product
PowerPact J
Accessory / Separate Part Category
connection accessory
Product Or Component Type
mechanical lug
Circuit Breaker TypeJD/JG/JJ/JL
Quantity Per Setset of 3
