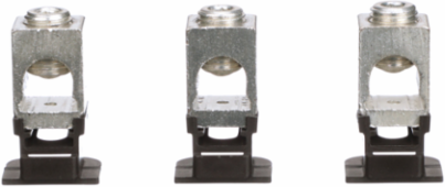

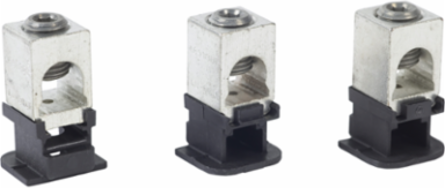

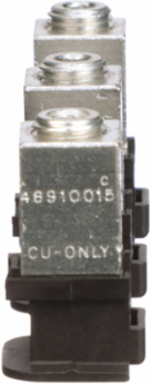

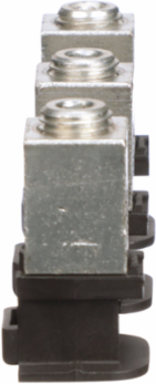

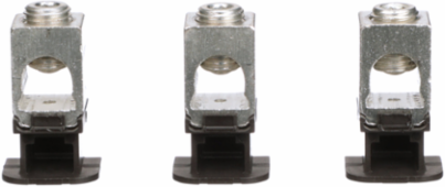

Square D CU150HD PowerPact H Mechanical Lug Kit, 50-150A, 14 to 2/0 AWG Copper, Qty 3
- MPN: CU150HD
- UPC: 785901582601
- PPN: SCH-CU150HD
CAD
$308.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This lug kit is for PowerPacT H circuit breakers. This PowerPacT H, mechanical lug is a connection accessory with a rated current of 15A to 150A and is made of copper. The lugs accept 14 AWG to 1/0 AWG copper conductors. The lugs comply with UL and CSA standards. This PowerPacT H, mechanical lug is a connection accessory with a rated current of 50-150A and is made of copper.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 50-150 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Certificate Agency
- CSA, UL
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 14 AWG...2/0 AWG copper
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 3
- Returnability
- Yes
- Tightening Torque
- 14-14 N.m 2.5-70 mm² (14 AWG...2/0 AWG)
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 121.563 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mounting Modeunit mount, I-Line
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker TypeHD/HG/HJ/HL
Materialcopper
Product Or Component Typemechanical lug
Range Of ProductPowerPact H
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical lug
Range Of ProductPowerPact H
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
