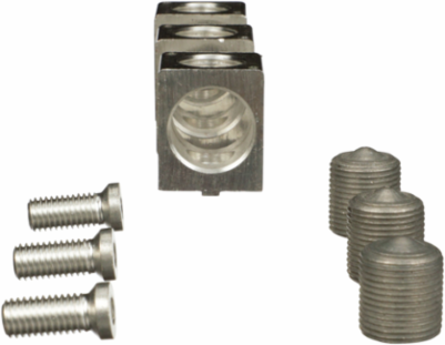

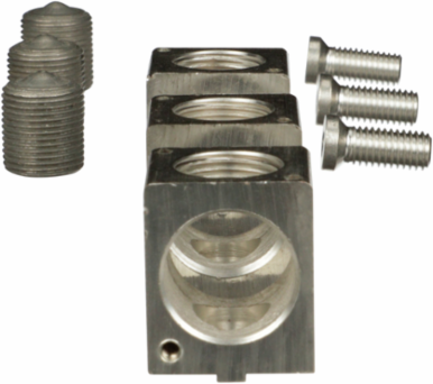

Square D CU400L61K3 PowerPacT L Lug Kit, Mechanical, 250-400A, 2 AWG to 600 kcmil, Copper, Qty 3
- MPN: CU400L61K3
- UPC: 785901164593
- PPN: SCH-CU400L61K3
CAD
$1500.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, mechanical lug is a connection accessory with a rated current of 400A and is made of copper. The lugs accept 2 AWG to 600kcmil copper conductors. The lugs comply with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 250-400 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Certificate Agency
- UL, CSA
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2543
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 3
- Returnability
- Yes
- Tightening Torque
- 31-31 N.m 35-300 mm² (AWG 2...600 kcmil)
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 657.708 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Modeunit mount, I-Line
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 2...600 kcmil copper
Materialcopper
Product Or Component Typemechanical lug
Range Of ProductPowerPact L
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical lug
Range Of ProductPowerPact L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
